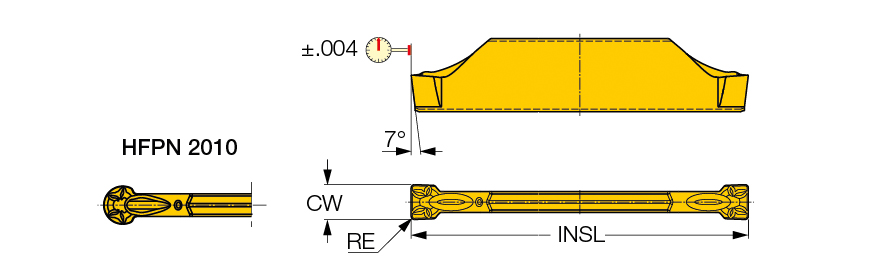

| Cutting Width (CW) | 0.079″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.764″ | Tool Type | Face Turn-Groove Inserts |
| Feed | 0.0039 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Utility double-ended face machining inserts. Can be used for both right or left-hand tools in face grooving and turning applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
