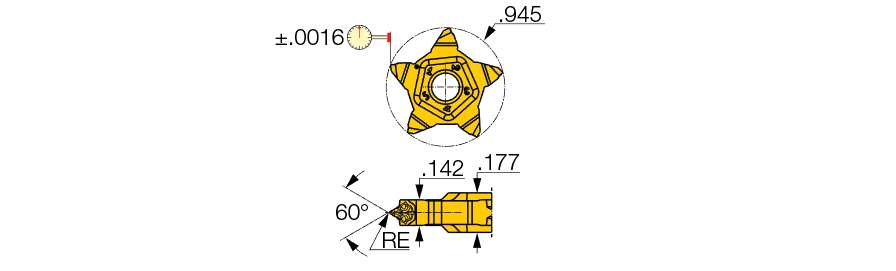

| Corner Radius (RE) | 0.0063″ | Number of Teeth | 1 |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.945″ | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Thread Standard | THFT | |
| Grade | IC908 | Threads per Inch (TPI) | 8 |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Height | 0.344″ |
| Cutting Direction (HAND) | Right Hand |
Product Features

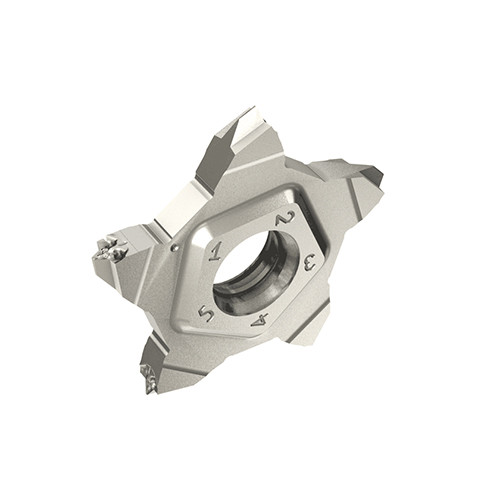

| Family Description | Precision ground UN (UNC, UNF, UNEF), full profile, pentagonal, external threading inserts with a chipformer for general applications. | Country of Origin | Israel |
| Remarks | DMIN(inch)=5.435/TPI Tolerance: Class 2A |
Shipping Info
Package Weight
0.026
