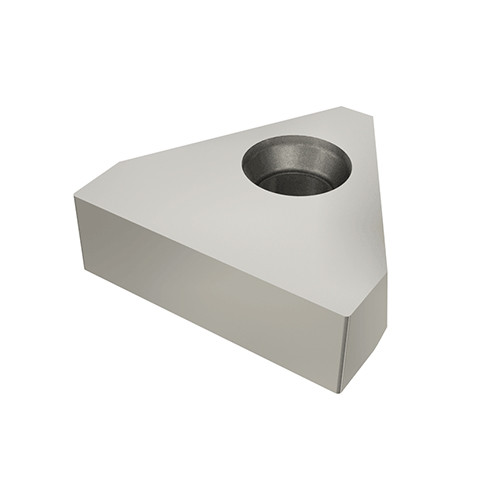

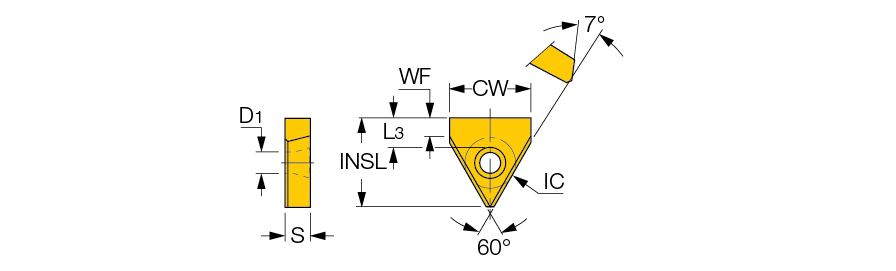

XNUW 1003-06 IC08
Grooving Insert; 0.409″ CW × 1/8″ Thickness × 3/8″ IC ; Carbide ; IC08 ; Uncoated
| Cutting Width (CW) | 0.409″ | Application | | Ext. Grooving | Int. Grooving | Int. Grooving (side limit) | |
| Thread Pitch Maximum (TPX) | 0.344″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.669″ | Tool Type | Groove-Turn Utility Inserts |
| Fixing Hole Diameter (D1) | 0.178″ | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 | Cutting Edge Length (L) | 0.401″ |
| Shape | Special | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Blank inserts for wide profile grooving. | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
