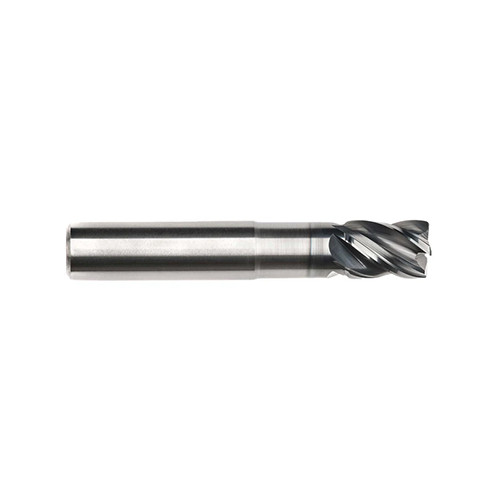

1/2″ × 1/2″ × 1″ × 6″ LBS=4-1/4 AlCrNX M924N 4F .030R RX Pow-R-Feed Mill
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 6″ OAL ; 0.03″ RE ; 4 FL
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 4-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IM206 |
| Overall Length (OAL) | 6″ | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Remarks | •Go deeper per pass in cavities with special flute length and no loss in tool rigidity •Neck relieved for machining in cavities and against tight walls •Advanced coating and tool design improves tool life exponentially •Unique vibration dampening geometry for chatter-free machining •Round shank •38° Helix | Country of Origin | Usa |
Shipping Info
Package Weight
0.560
