TDXU2E-0.3 TT6300

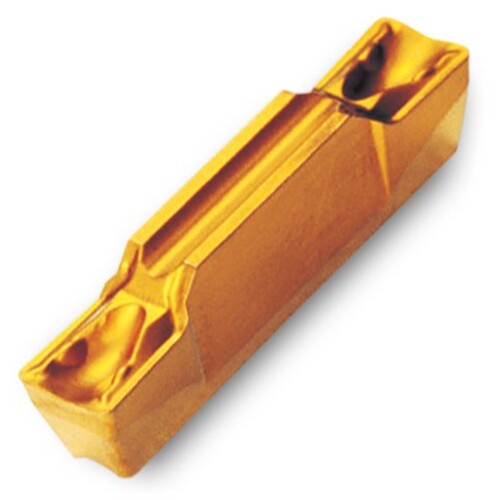

Grooving Insert; 0.12 mm CW × 0.195″ Max Depth × 1/8″ Thickness × 2″ IC ; Carbide ; TT6300 ; AlTiN
| Cutting Width (CW) | 0.12 mm | Shape | Parrallelogram |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Edge Material | Carbide |
| Thread Pitch Maximum (TPX) | 0.185″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 2″ | Threads per Inch (TPI) | 8 |
| Coating | AlTiN | Cutting Edge Length (L) | 0.401″ |
| Grade | TT6300 | Height | 0.344″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
2.2
