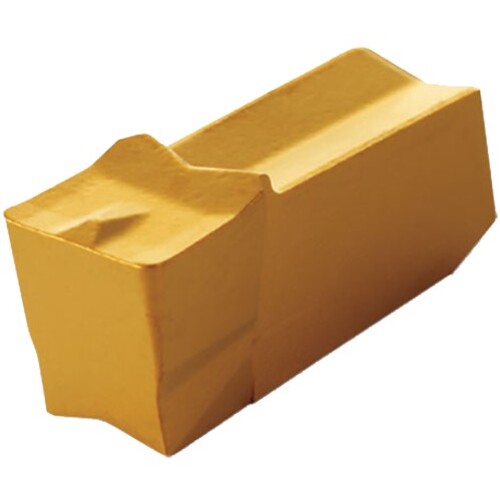

TIPV400E040 K10
Grooving Insert; TIPV400E040 K10 0.157″ CW × 4″ IC
| Cutting Width (CW) | 0.157″ | Shape | Parrallelogram |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Edge Material | Carbide |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 4″ | Threads per Inch (TPI) | 8 |
| Coating | AlTiN | Cutting Edge Length (L) | 0.401″ |
| Grade | K10 | Height | 0.344″ |
Product Features
| Family Description | "V" Type Chipbreakers | Country of Origin | Israel |
Shipping Info
Package Weight
0.1
