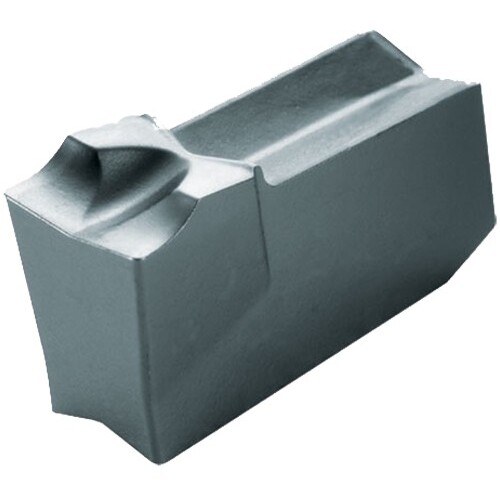

TIMJ486L TT5100
Grooving Insert; TIMJ486L TT5100 0.189″ CW × 4″ IC ; Carbide ; TiCN+Al2O3
| Cutting Width (CW) | 0.189″ | Shape | Parrallelogram |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Edge Material | Carbide |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 4″ | Threads per Inch (TPI) | 8 |
| Insert Rake Angle (GAN) | 6 Degrees | Cutting Edge Length (L) | 0.401″ |
| Coating | TiCN|Al2O3 | Height | 0.344″ |
| Grade | TT5100 |
Product Features
| Family Description | "J" Type Chipbreakers | Country of Origin | Israel |
Shipping Info
Package Weight
0.15
