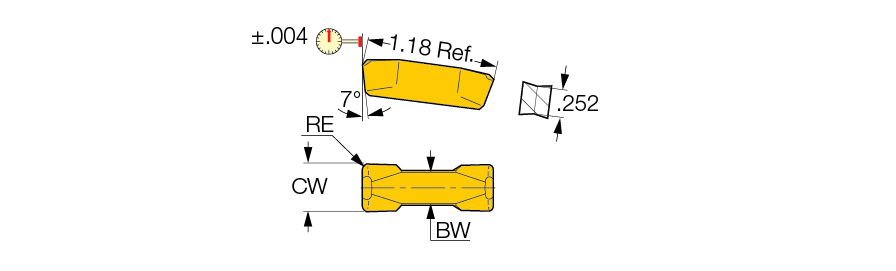

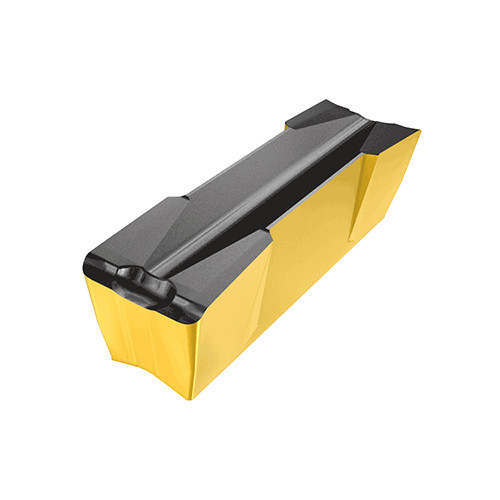

GDMU 808 IC830
Grooving Insert; 0.315″ CW ; Carbide ; IC830 ; AlTiN+TiN
| Cutting Width (CW) | 0.315″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Grooving | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 1.181″ | Measurement Type | Inch |
| Feed | 0.0094 inch/rev | Tool Type | Groove-Turn Utility Inserts |
| Coating | AlTiN+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC830 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | Utility double-ended inserts, used for grooving on tough and ductile materials | Country of Origin | Israel |
Shipping Info
Package Length
1.10000
Package Width
.40000
Package Height
.40000
Package Weight
0.048
