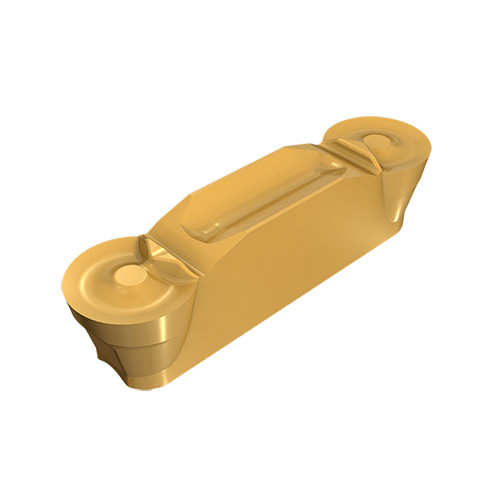

FGMA 630 IC07
Grooving Insert; 0.236″ CW × 0.167″ Thickness ; Carbide ; IC07 ; Uncoated

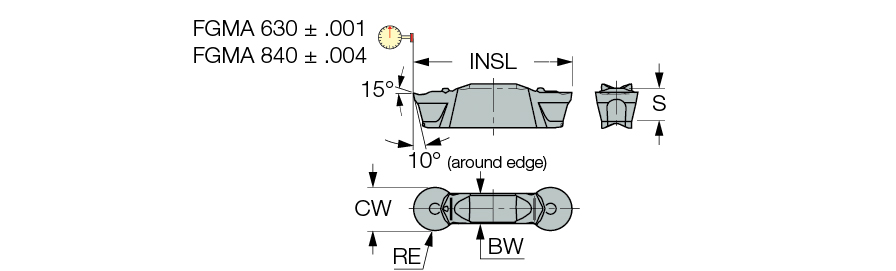

| Cutting Width (CW) | 0.236″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.118″ | Application | | Ext. Grooving | Ext. Profiling | Ext. Turning Aluminum Wheels | Face Grooving & Turning | Int. Machining Aluminum Wheels | Int. Undercut & Turning | |
| Clearance Angle Major (AN) | 10 Degrees | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.167″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.969″ | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Insert Rake Angle (GAN) | 15 Degrees | Threads per Inch (TPI) | 8 |
| Feed | 0.0177 inch/rev | Body Material | Carbide |
| Coating | Uncoated | Cutting Edge Length (L) | 0.401″ |
| Grade | IC07 | Height | 0.344″ |
| Shape | 90° Rectangular |
Product Features
| Family Description | Full radius, utility double-ended inserts for machining aluminum and other soft materials. Used mainly for machining aluminum wheels at medium-to-high feeds. Cut arcs to 250°. | Country of Origin | Israel |
Shipping Info
Package Weight
0.021
