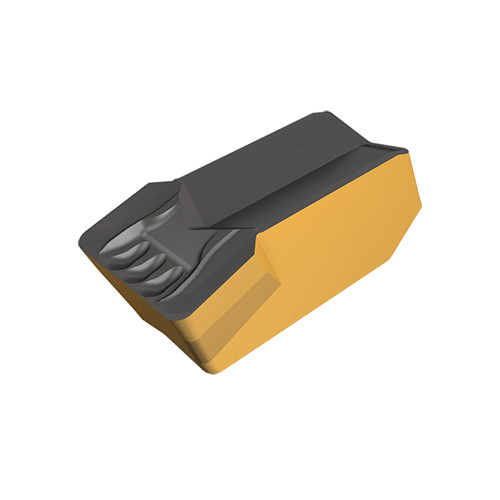

GIMY 304 IC8250
Grooving Insert; 0.118″ CW ; Carbide ; IC8250 ; TiCN+Al2O3+TiN

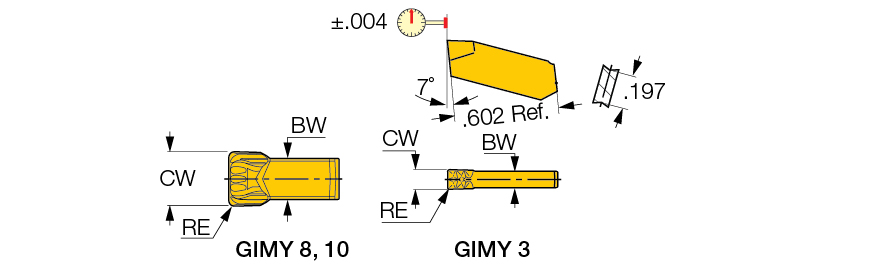

| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.016″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | Y |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Feed | 0.0079 inch/rev | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiCN+Al2O3+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC8250 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | Side Slotting | Slitting | T Slotting | |
Product Features
| Family Description | Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal applications = 2.76 For slitting, side slotting and T-slotting applications, the maximum grooving depth is .5 . |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
1.00000
Package Weight
0.009
