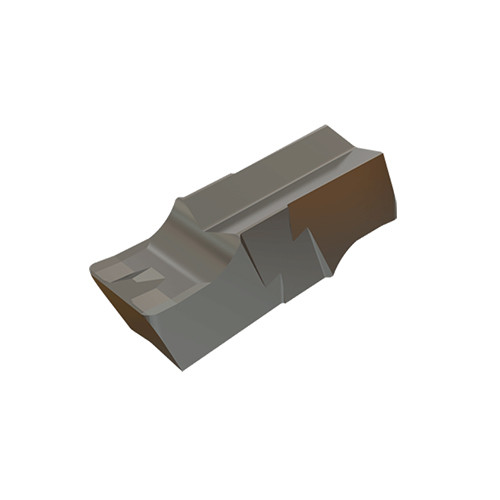

GIPI 4.23-0.10 IC20
Double-ended precision inserts with P-type chipformer for internal grooving and recessing at medium feeds.
| Cutting Width (CW) | 0.167″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.004″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 8 Degrees | Chip Breaker Type | PG |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 0.787″ | Measurement Type | Inch |
| Feed | 0.0051 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Threads per Inch (TPI) | 8 |
| Grade | IC20 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
Product Features
| Family Description | Double-ended precision inserts with P-type chipformer for internal grooving and recessing at medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal application=.787 |
Shipping Info
Package Weight
0.008
