M4574.013-A15-01-05

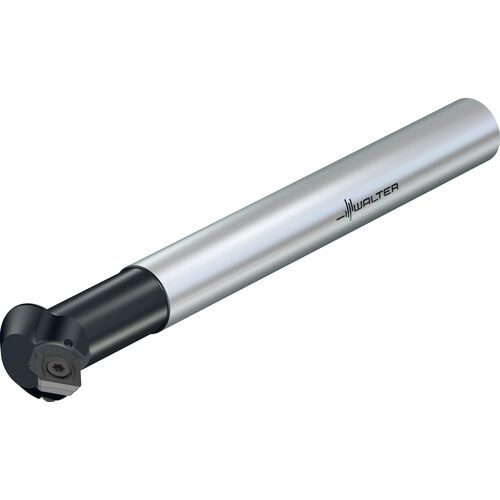

Indexable End Mill; 1/2″ Dia. × 5.5 mm LOC × 15.875 mm Shank Dia. × 160 mm OAL ; Weldon Shank ; 45 Degrees ; Series M4574
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 1/2″ | Connection Diameter Machine Side (DCONMS) | 15.875 mm |
| Cutting Diameter (DC) | 1/2″ | Head Length (LH) | 40 mm |
| Cutting Item Count (CICT) | 1 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 5.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 160 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Series/List # | M4574 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.507
