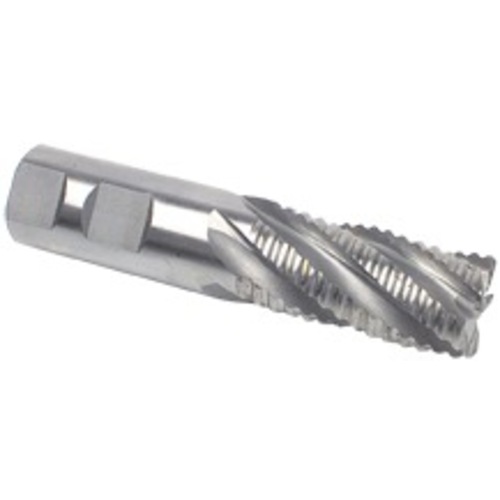

1-1/2″ Dia-6-1/2″ OAL-TiN M42-Roughing SE EM-6 FL
SQ End Mill; 1-1/2″ Dia. × 4″ LOC × 1-1/4″ Shank Dia. × 6-1/2″ OAL ; 6 FL ; HSSCo ; TiN
| Cutting Diameter (DC) | 1-1/2″ | Flute Count (NOF) | 6 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Usable Length (LU) | 4″ |
| Depth of Cut Maximum (APMX) | 4″ | Application | Roughing |
| Overall Length (OAL) | 6-1/2″ | Length Group | Long |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiN | Decimal Equivalent | 1.5″ |
Product Features
| Remarks | •M-42 Cobalt - Coarse Tooth Center Cutting Roughing End Mills •For general purpose milling of soft to medium hard materials •Suitable for heavier feed rates •TiN coating improves tool life and allows elevated feeds and speeds •TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials | Country of Origin | S.Korea |
Shipping Info
Package Weight
2.248
