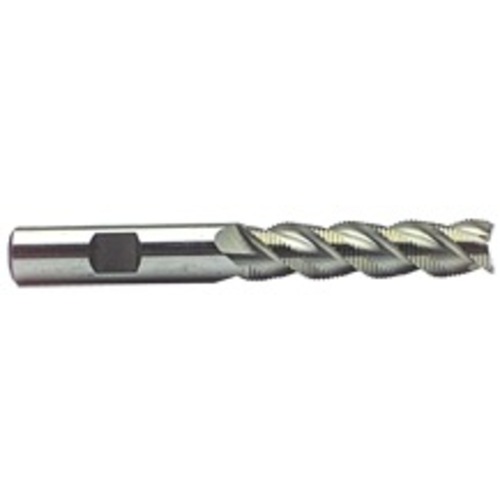

2″ Dia-4-1/2″ OAL-TiN M42-Roughing SE EM-3 FL
SQ End Mill; 2″ Dia. × 2″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 3 FL ; HSSCo ; TiN
| Cutting Diameter (DC) | 2″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 2″ | Usable Length (LU) | 2″ |
| Overall Length (OAL) | 4-1/2″ | Application | Roughing |
| Cutting Edge Material | HSSCo | Length Group | Standard |
| Coating | TiN | Flute Type | Fine |
| Flute Count (NOF) | 3 | Decimal Equivalent | 2″ |
Product Features
| Remarks | •M-42 Cobalt - Fine Tooth–45° High Helix–3 Flute •Center Cutting Roughing End Mills •Use for milling operations in hard materials •3-flute design and high shear angle aids in chip removal and produces better finishes than coarse tooth design | Country of Origin | S.Korea |
Shipping Info
Package Length
5.60000
Package Width
2.10000
Package Height
2.30000
Package Weight
2.26
