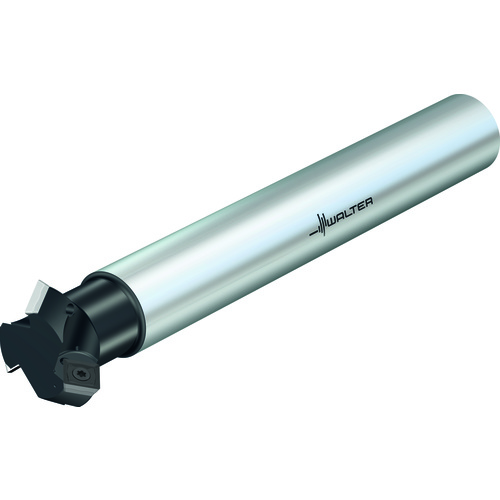

M4574-032-A32-03-07
Indexable End Mill; 32 mm Dia. × 7.5 mm LOC × 32 mm Shank Dia. × 250 mm OAL ; Round Shank ; 45 Degrees ; Series M4574
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 32 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 32 mm | Head Length (LH) | 40 mm |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 7.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 250 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Series/List # | M4574 |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
3.245
