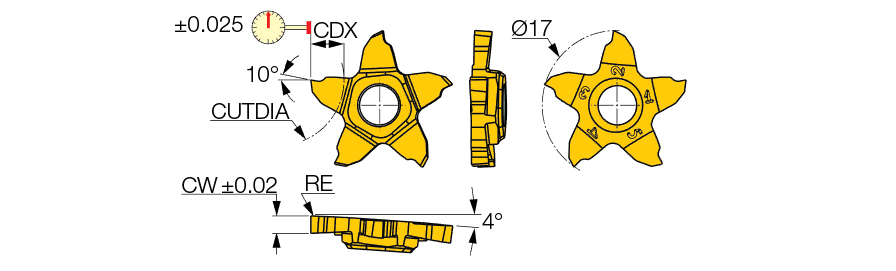

PENTA 17N140P010LS IC1008
Grooving Insert; 1.4 mm CW × 3 mm Max Depth × 18.22 mm IC ; Carbide ; IC1008 ; TiAlN+TiN
| Cutting Width (CW) | 1.4 mm | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 18.22 mm | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision grooving and parting pentagonal inserts with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed. | Country of Origin | Israel |

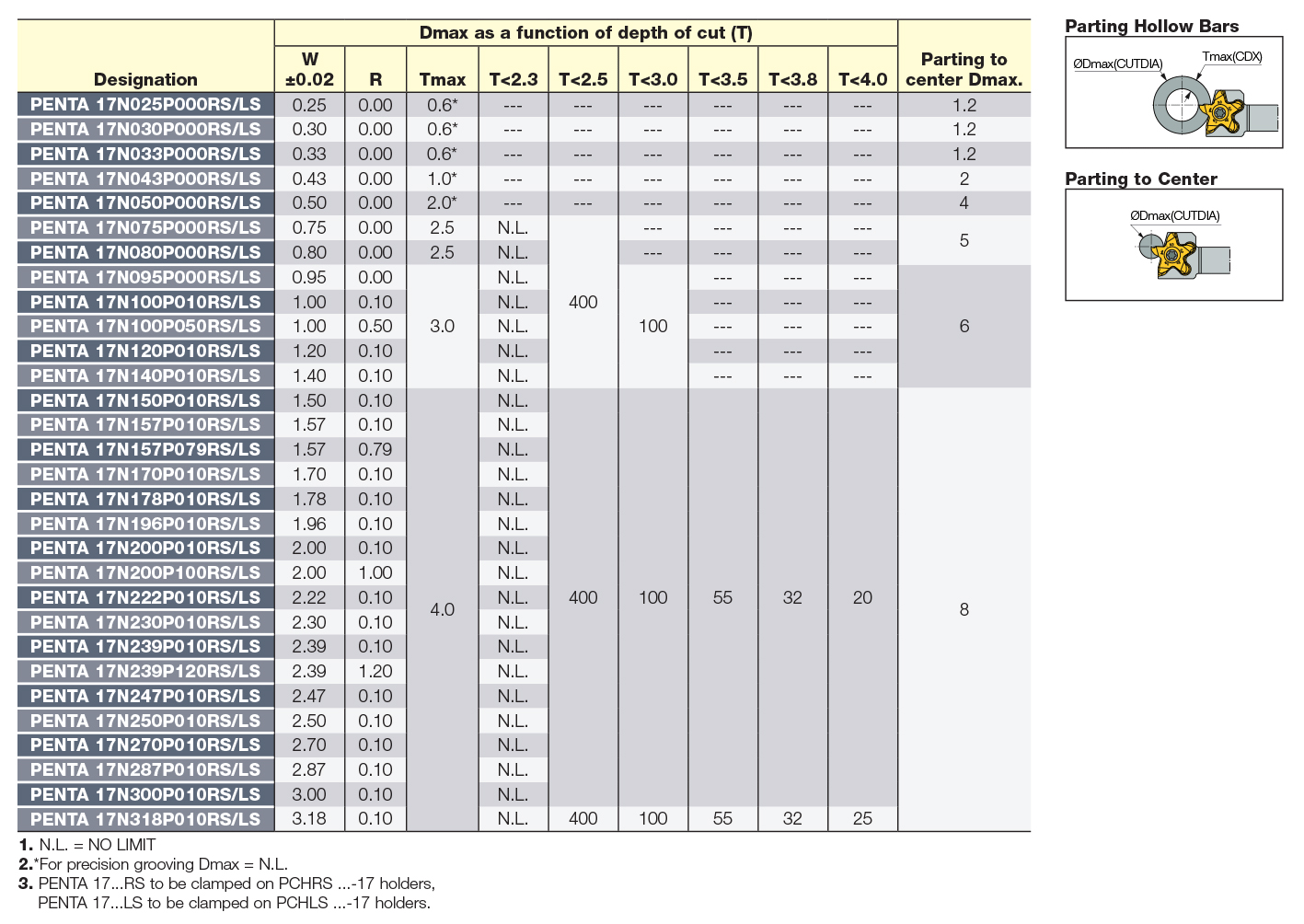

| Remarks | For parting and grooving range, click on "More Info". |
Shipping Info
Package Weight
0.009
