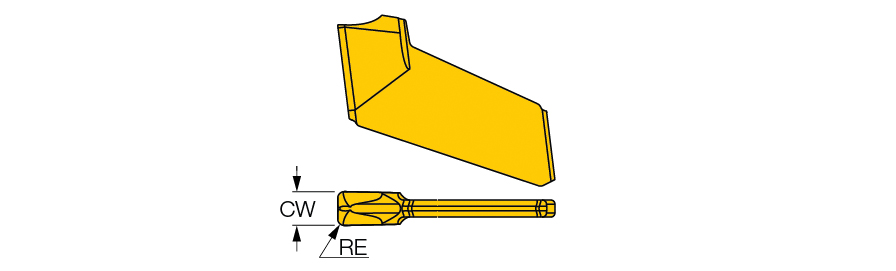

GFT 1.6J-0.16 IC1008
Grooving Insert; 1.6 mm CW ; Carbide ; IC1008 ; TiAlN+TiN
| Cutting Width (CW) | 1.6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.16 mm | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Chip Breaker Type | J |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC1008 | Threads per Inch (TPI) | 8 |
| Shape | Parrallelogram | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | | Height | 0.344″ |
Product Features
| Family Description | Thin Parting, Grooving & Slitting single-ended inserts for soft materials. Cutting edge with a positive rake, used at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.003
