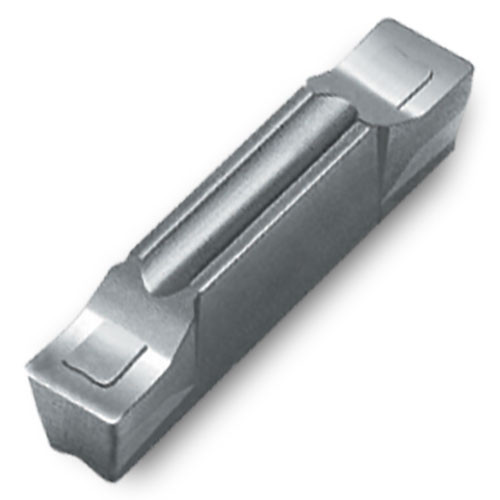

TDIT4E-0.4TCE AB30
Grooving Insert; 0.157″ CW ; AB30
| Cutting Width (CW) | 0.157″ | Insert Seat Size Code (SSC) | 4 |
| Corner Radius (RE) | 0.016″ | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Threads per Inch (TPI) | 8 |
| Grade | AB30 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Application | | Int. Groove & Turn | Int. Grooving | | Height | 0.344″ |
| Overall Length (OAL) | 0.79″ |
Product Features
| Family Description | T-type Chipbreakers | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.006
