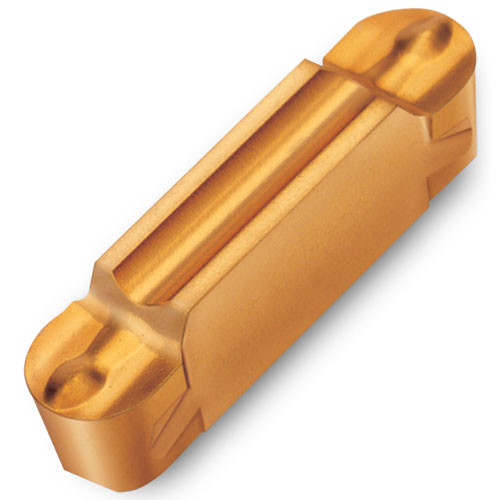

TDIT4.00E-2.00 TT7220
Grooving Insert; 0.157″ CW × 0.008″ Max Depth × 0.185″ Thickness ; Carbide ; TT7220 ; TiCN

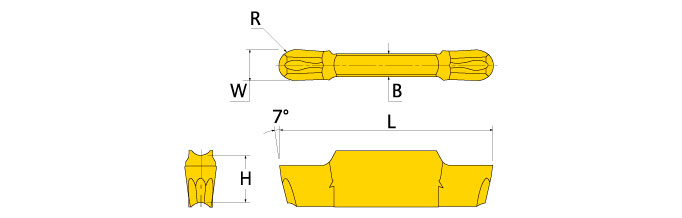

| Cutting Width (CW) | 0.157″ | Application | | Ext. Grooving | Ext. Profiling | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Ext.) Groove Turn T | |
| Corner Radius (RE) | 0.079″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.008″ | Number of Cutting Edges | 2 |
| Clearance Angle Major (AN) | 7 Degrees | Insert Seat Size Code (SSC) | 4 |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.185″ | Threads per Inch (TPI) | 8 |
| Insert Length (INSL) | 0.787″ | Min. Grooving Feed (fg(min)) | 0.004″ |
| Coating | TiCN | Body Material | Carbide |
| Grade | TT7220 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.010
