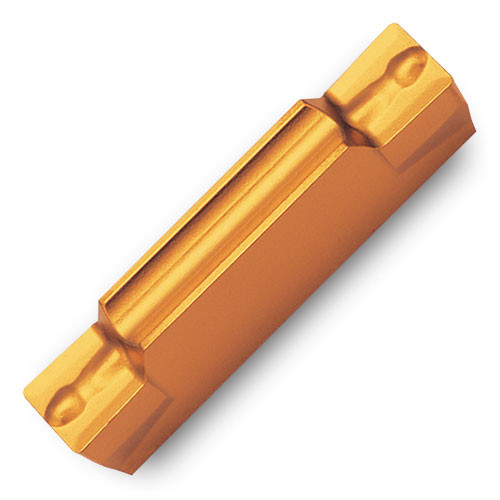

TDT3E-0.4 CT3000
Grooving Insert; 0.118″ CW × 0.0059″ Max Depth × 0.087″ Thickness ; Cermet ; CT3000
| Cutting Width (CW) | 0.118″ | Application | | Ext. Grooving | Ext. Grooving & Turning | |
| Corner Radius (RE) | 0.016″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.0059″ | Number of Cutting Edges | 2 |
| Clearance Angle Major (AN) | 7 Degrees | Insert Seat Size Code (SSC) | 3 |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.087″ | Threads per Inch (TPI) | 8 |
| Insert Length (INSL) | 0.787″ | Body Material | Carbide |
| Grade | CT3000 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Cermet |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.006
