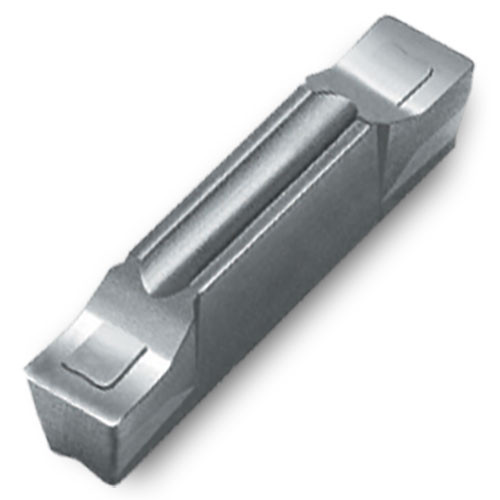

TDFT4E-0.4TRCE AB30
Grooving Insert; 0.157″ CW × 0.014″ Max Depth × 0.118″ Thickness ; AB30
| Cutting Width (CW) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.016″ | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 0.014″ | Insert Seat Size Code (SSC) | 4 |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Threads per Inch (TPI) | 8 |
| Insert Thickness (S) | 0.118″ | Min. Grooving Feed (fg(min)) | 0.004″ |
| Insert Length (INSL) | 0.79″ | Body Material | Carbide |
| Grade | AB30 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Application | | Countersinking | Side Slotting | |
Product Features
| Family Description | T-type Chipbreakers | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.006
