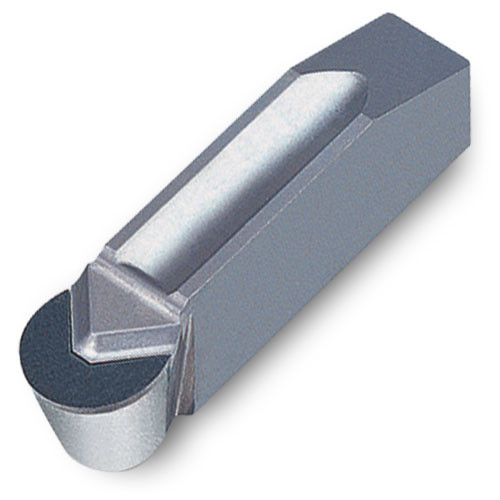

TSA6.00-3.00 KP300
Grooving Insert; 0.236″ CW × 0.014″ Max Depth × 0.157″ Thickness ; PCD ; KP300
| Cutting Width (CW) | 0.236″ | Application | | Ext. Profiling | Int. Groove & Turn | |
| Corner Radius (RE) | 0.118″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.014″ | Number of Cutting Edges | 1 |
| Clearance Angle Major (AN) | 7 Degrees | Insert Seat Size Code (SSC) | 6 |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.157″ | Threads per Inch (TPI) | 8 |
| Insert Length (INSL) | 0.98″ | Min. Grooving Feed (fg(min)) | 0.005″ |
| Grade | KP300 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | PCD | Height | 0.344″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.037
