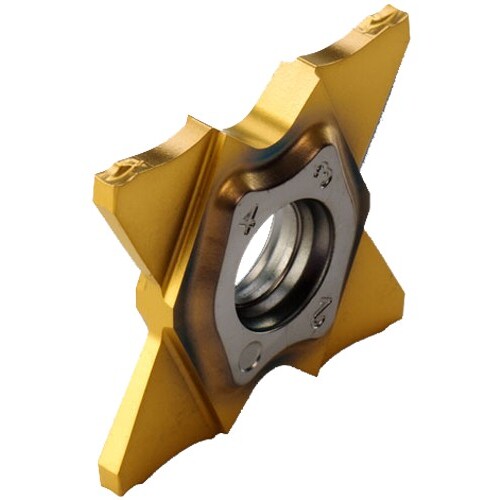

TQJ27-2.00-0.10 TT9080
Grooving Insert; 0.094″ CW × 0.252″ Max Depth × 1/8″ Thickness ; Carbide ; TT9080 ; AlTiN
| Cutting Width (CW) | 0.094″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.004″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.252″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 1/8″ | Threads per Inch (TPI) | 8 |
| Insert Rake Angle (GAN) | 0 Degrees | Body Material | Carbide |
| Coating | AlTiN | Cutting Edge Length (L) | 0.401″ |
| Grade | TT9080 | Height | 0.344″ |
Product Features
| Family Description | T = Maximum Groove Depth Dependent on workpiece diameter "Dmax" Refer to chart below | Country of Origin | Israel |
Shipping Info
Package Weight
0.05
