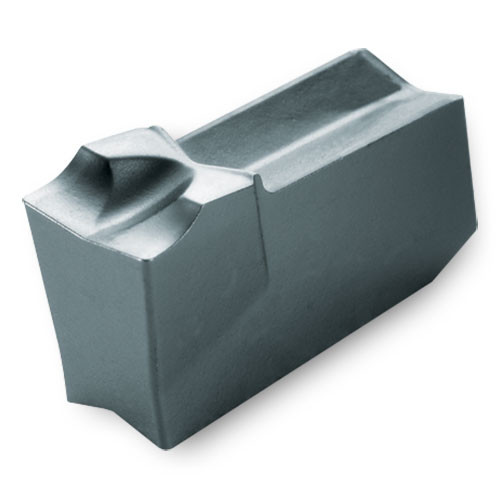

TIMJ56R K10
Grooving Insert; 0.2″ CW × 0.008″ Max Depth ; K10
| Cutting Width (CW) | 0.2″ | Number of Cutting Edges | 1 |
| Corner Radius (RE) | 0.012″ | Insert Seat Size Code (SSC) | 4 |
| Cutting Depth Maximum (CDX) | 0.008″ | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Threads per Inch (TPI) | 8 |
| Grade | K10 | Min. Grooving Feed (fg(min)) | 0.003″ |
| Shape | Parrallelogram | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Edge Length (L) | 0.401″ |
| Cutting Direction (HAND) | Right Hand | Height | 0.344″ |
Product Features
| Family Description | J-type Chipbreakers | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
