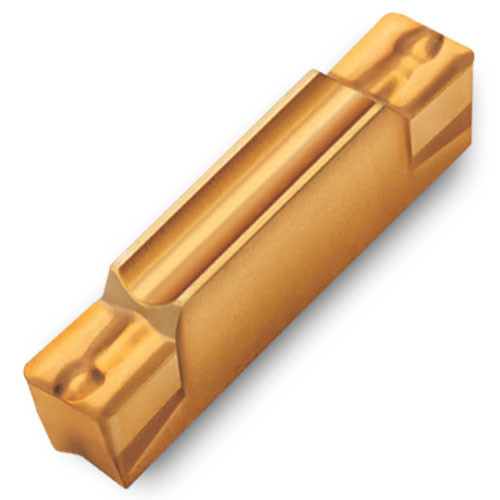

TDIT6.00E-0.80 TT5100
Grooving Insert; 0.236″ CW × 0.0118″ Max Depth × 0.205″ Thickness ; Carbide ; TT5100 ; TiCN+Al2O3

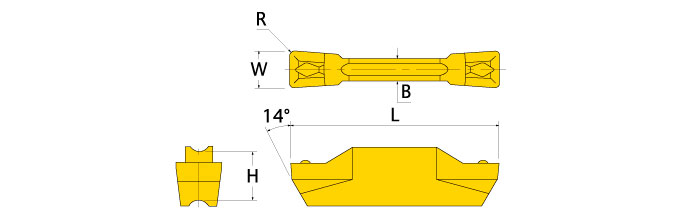

| Cutting Width (CW) | 0.236″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.031″ | Application | | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 0.0118″ | Cutting Direction (HAND) | Neutral |
| Clearance Angle Major (AN) | 14 Degrees | Number of Cutting Edges | 2 |
| Thread Pitch Maximum (TPX) | 0.344″ | Insert Seat Size Code (SSC) | 6 |
| Insert Thickness (S) | 0.205″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.984″ | Threads per Inch (TPI) | 8 |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | TT5100 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.024
