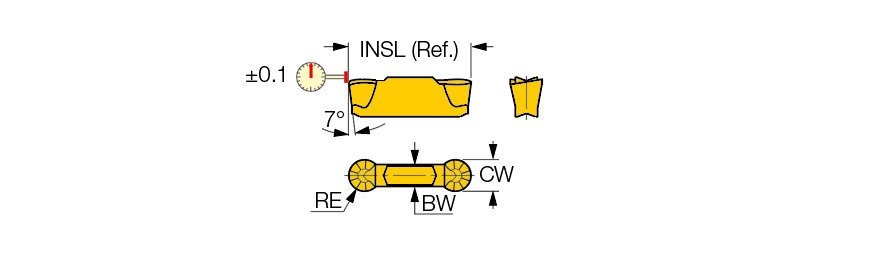

GRIP 5025Y IC8250
Grooving Insert; 5 mm CW ; Carbide ; IC8250 ; TiCN+Al2O3+TiN
| Cutting Width (CW) | 5 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Number of Teeth | 2 |
| Insert Length (INSL) | 19 mm | Measurement Type | Metric |
| Feed | 0.42 mm/rev | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiCN+Al2O3+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC8250 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |

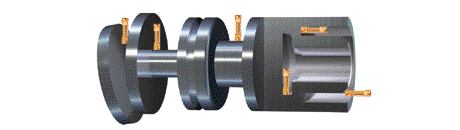

| Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
Product Features
| Family Description | Full radius double-ended inserts, for turning and grooving in external, internal and face applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.01
