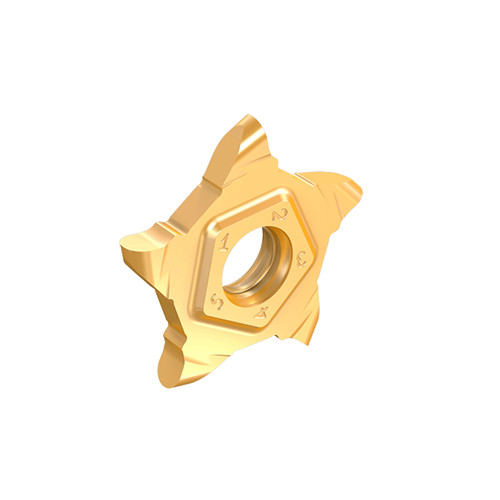

PENTA 17N080P040RS IC1008
Precision grooving most economical inserts with 5 cutting edges for soft parts.

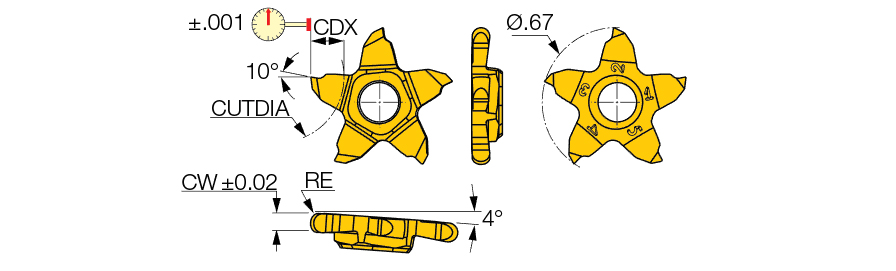

| Cutting Width (CW) | 0.031″ | Application | | Ext. Grooving | Ext. Profiling | |
| Corner Radius (RE) | 0.0157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.717″ | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.197″ |
Product Features
| Family Description | Precision grooving most economical inserts with 5 cutting edges for soft parts. | Country of Origin | Israel |

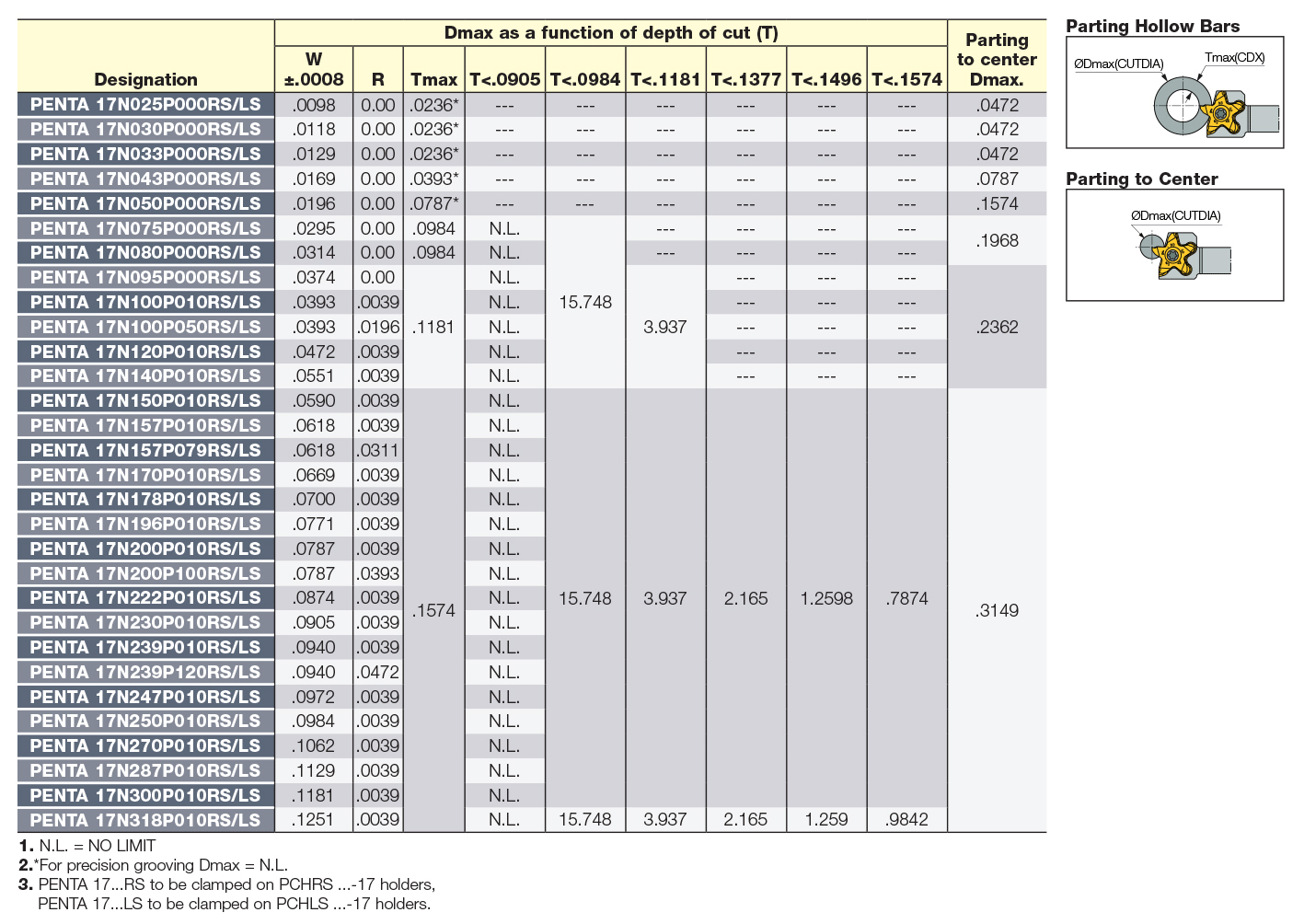

| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
LocalField10
0
Package Weight
0.009
