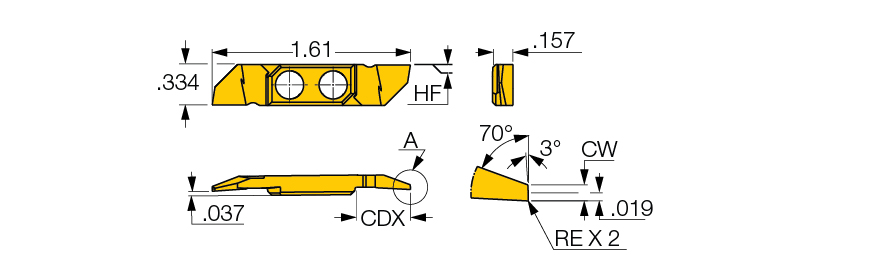

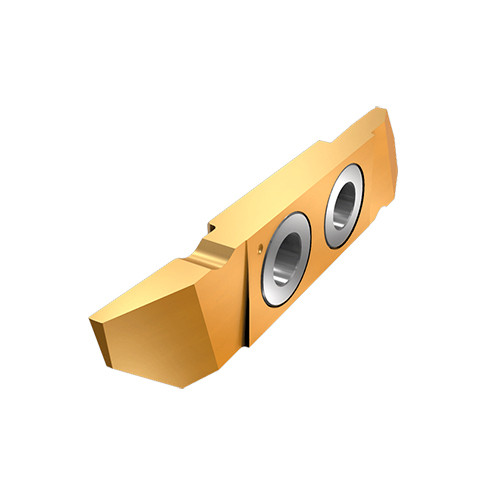

SCIR 41-ERA00-10K0 IC1008
| Cutting Width (CW) | 0.039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Coating | TiAlN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC1008 | Threads per Inch (TPI) | 8 |
| Shape | Parrallelogram | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Back Turning | | Height | 0.344″ |
Product Features
| Family Description | Back turning inserts with a flat top rake for short chipping materials, used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.036
