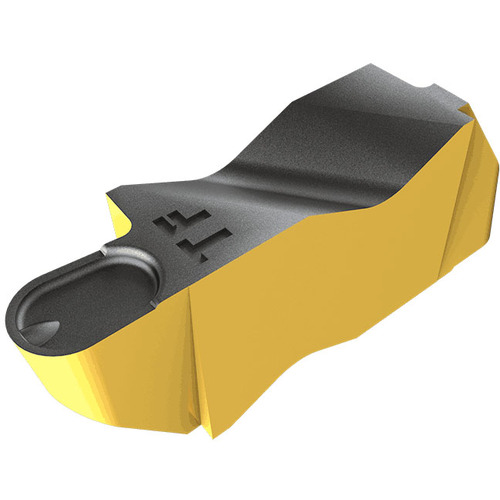

INR3062LCB IC907
Grooving Insert; 1/8″ CW × 0.18″ Max Depth × 0.344″ Thickness ; Carbide ; IC907 ; TiAlN

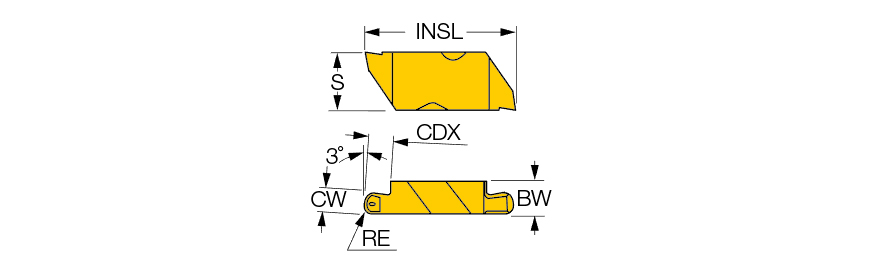

| Cutting Width (CW) | 1/8″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0618″ | Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.18″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.884″ | Threads per Inch (TPI) | 8 |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
Product Features
| Family Description | Double-ended precision full radius grooving inserts with a chipformer. | Country of Origin | USA |
| Remarks | DMIN according to related boring bar |
Shipping Info
Package Weight
0.002
