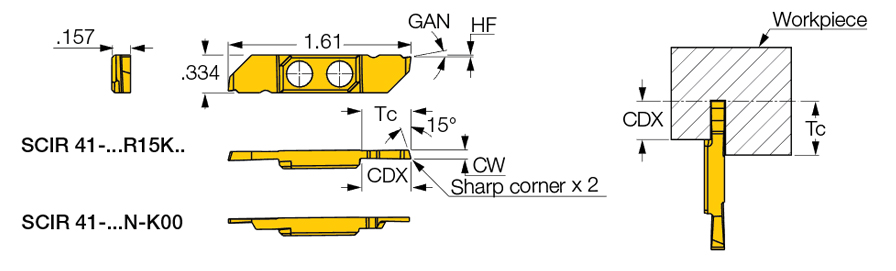

SCIR 41-100N-K00 IC1008
Grooving Insert; 0.039″ CW × 0.242″ Max Depth ; Carbide ; IC1008 ; TiAlN+TiN
| Cutting Width (CW) | 0.039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.242″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 0 Degrees | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC1008 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Parting | |
Product Features
| Family Description | Grooving and parting inserts with parallel and frontal lead angle for reduced burr remaining on the workpiece. Used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.036
