GIF 4.00E-0.40 IC908

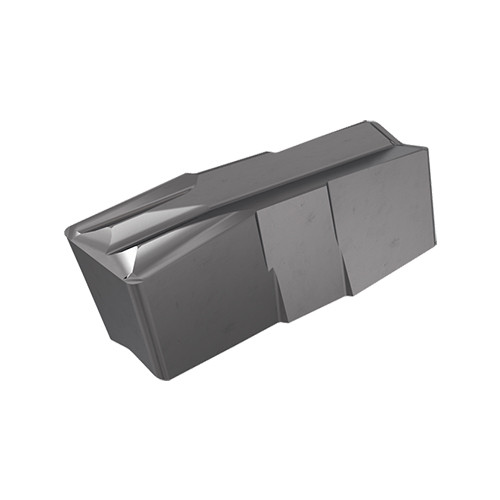

CUT-GRIP, precision, double-ended inserts for grooving and turning at low to-medium feeds.

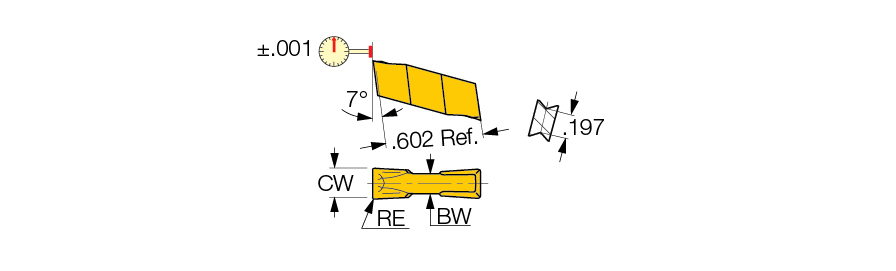

| Cutting Width (CW) | 0.157″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.016″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.512″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | FT |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Insert Length (INSL) | 0.602″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.756″ | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Threads per Inch (TPI) | 8 |
| Grade | IC908 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | CUT-GRIP, precision, double-ended inserts for grooving and turning at low to-medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.025
