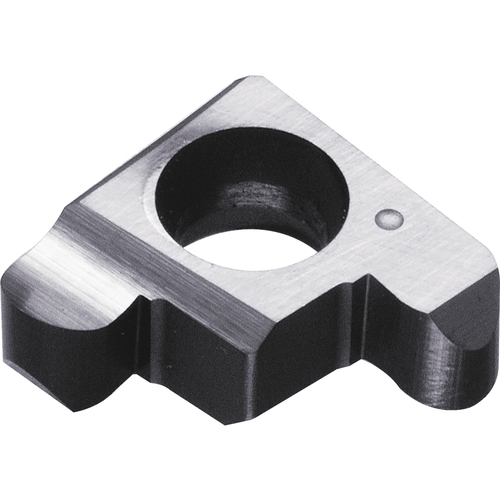

GE R100050BR KW10 INSERT

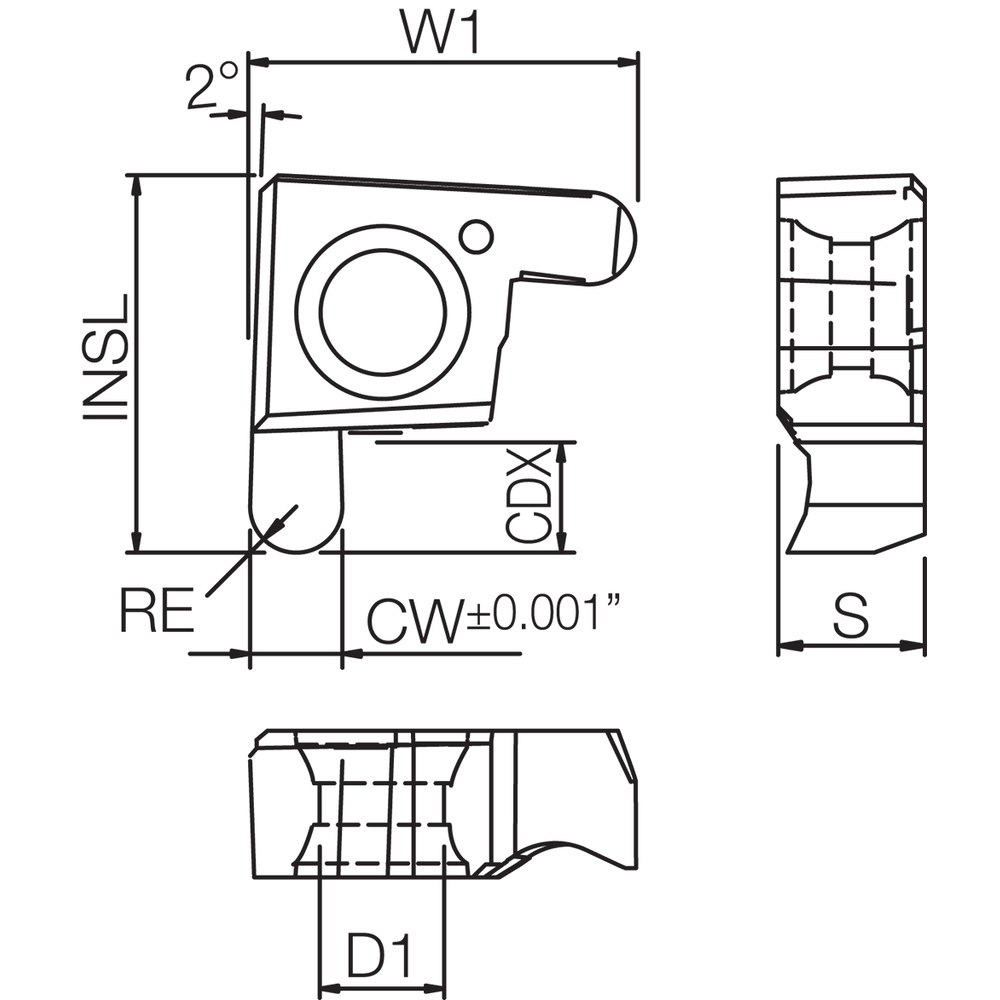

| Cutting Width (CW) | 1 mm | Chip Breaker Type | BR |
| Corner Radius (RE) | 0.5 mm | Overall Length (OAL) | 8.2 mm |
| Cutting Depth Maximum (CDX) | 2.2 mm | Insert Style | GE |
| Fixing Hole Diameter (D1) | 2.7 mm | Insert Seat Size Code (SSC) | 100050 |
| Coating | Uncoated | Number of Teeth | 2 |
| Grade | KW10 | Mounting Style | Clamp |
| Shape | 2-edge, Full Radius | Series/List # | SIGE |
| Cutting Edge Material | Carbide | Coating Process | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # GER100050BRKW10 | Country of Origin | China |
Shipping Info
Package Weight
.0741
