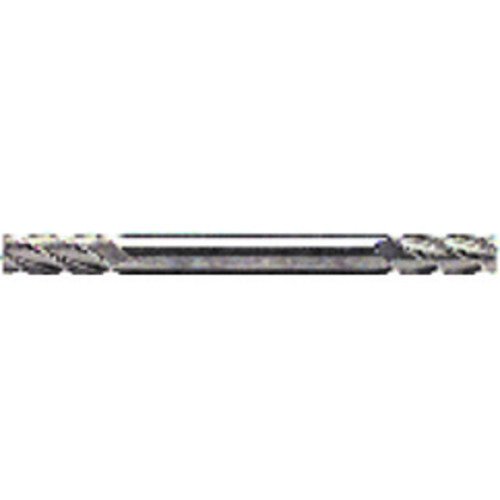

1/8″ × 3/16″ × 3/8″ × 2 1/4″ 4 Flute Double End HSSCo Finishing Center Cutting End Mill-Uncoated Series/List #1895C
SQ End Mill; 1/8″ Dia. × 3/8″ LOC × 3/16″ Shank Dia. × 2-1/4″ OAL ; 4 FL ; 3/8″ LBS ; HSSCo ; Uncoated ; Series 1895C
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | Double End |
| Overall Length (OAL) | 2-1/4″ | Length Group | Regular |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 1895C |
Product Features
| Remarks | •4-Flute Regular Length Double End M–42 8% Cobalt Miniature End Mills •3/16 Shank • Center Cutting •M–42 8% Cobalt is ideal for the tougher cutting assignments on hi-strength, hi-temp steels and exotic materials or extended production runs in conventional and N/C milling operations. | Country of Origin | USA |
Shipping Info
Package Length
3.30000
Package Width
.50000
Package Weight
0.016
