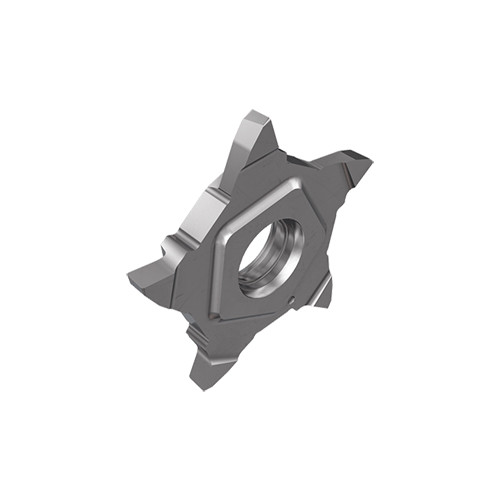

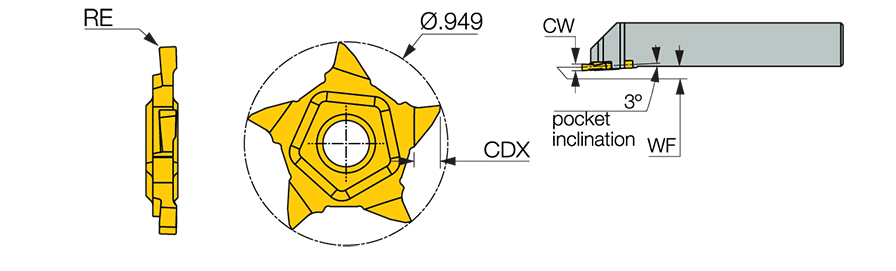

PENTA 24N200PF020RS IC908
Parting Off Insert; 0.079″ CW × 0.0079″ Corner Radius ; Right Hand ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 0.079″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.118″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Functional Width (WF) | 0.038″ |
| Grade | IC908 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.148″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Parting and precision grooving pentagonal inserts. Used for next to high shoulder applications. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.024
