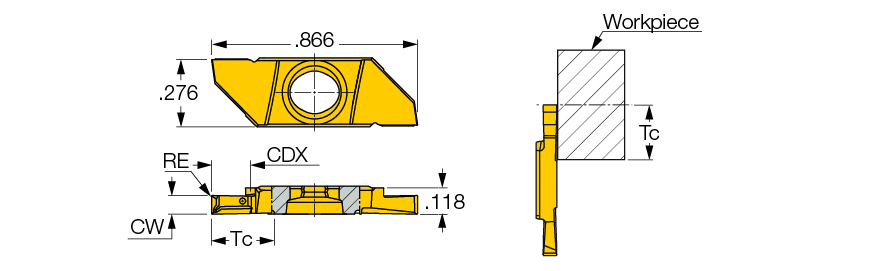

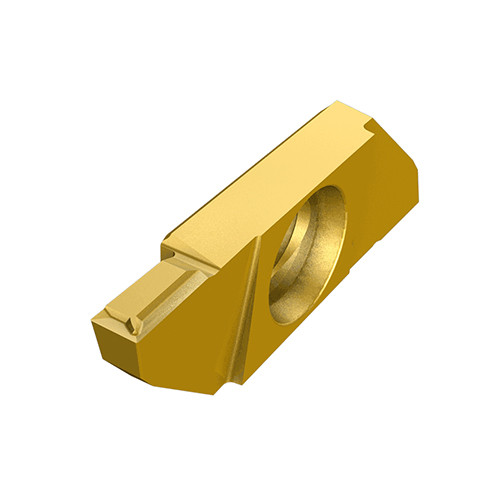

SCIL 22-200NX080 IC1008
Grooving Insert; 0.079″ CW × 0.169″ Max Depth × 0.276″ Thickness ; Carbide ; IC1008 ; TiAlN+TiN
| Cutting Width (CW) | 0.079″ | Application | | Ext. Grooving | Ext. Turning | |
| Corner Radius (RE) | 0.0031″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.169″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.276″ | Tool Type | Groove-Turn Precision Inserts |
| Insert Length (INSL) | 0.866″ | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Groove-turn inserts used on Swiss type automatics and small CNC lathes. Excellent chip control on alloy and stainless steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
