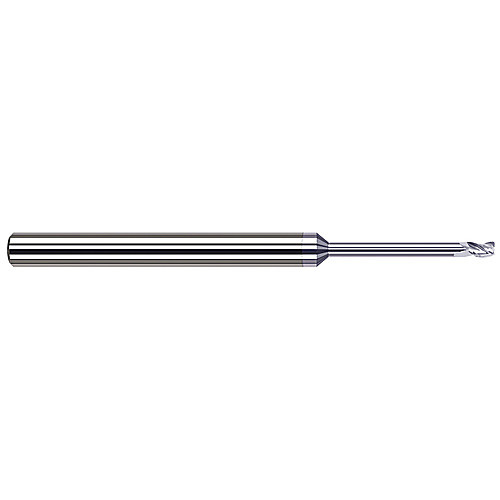

Variable Helix End Mills for Aluminum Alloys - 0.1250″ (1/8″) Cutter Diameter × 0.0050″ Radius × 0.1870″ (3/16″) Length of Cut × 1.2500″ (1-1/4″) Reach Carbide Corner Radius End Mill for Aluminum Alloys, 3 Flutes, TiB2 Coated
SQ End Mill; 1/8″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 0.005″ RE ; 3 FL ; 1-1/4″ LBS ; Carbide ; TiB2
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3/16″ | Corner Radius (RE) | 0.005″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 10D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | TiB2 | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
