GEMI 2002N IC808
Grooving Insert; 0.079″ CW × 0.315″ Max Depth ; Carbide ; IC808 ; TiAlN+AlTiN+TiN

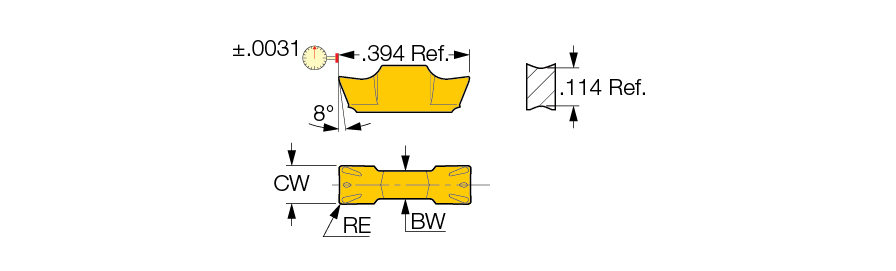

| Cutting Width (CW) | 0.079″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.008″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 0.315″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.394″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.453″ | Tool Type | Groove-Turn Utility Inserts |
| Feed | 0.0039 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
Product Features

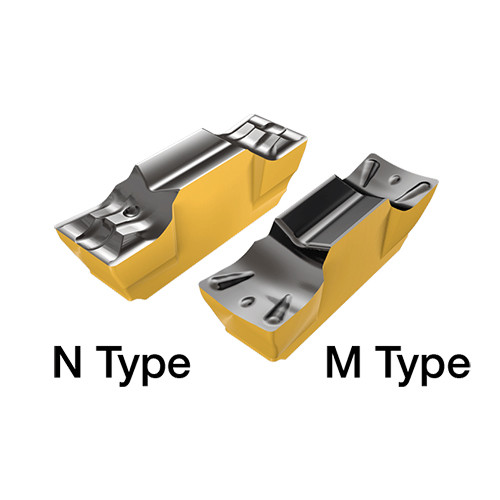

| Family Description | Utility as pressed double-ended inserts, for internal, external turning and grooving at low feeds in diameters from .452″. | Country of Origin | Israel |
| Remarks | GEMI N inserts for ductile materials and low feed DMIN for internal application=.453 |
Shipping Info
Package Length
3.56000
Package Width
1.32000
Package Height
.24000
Package Weight
0.005
