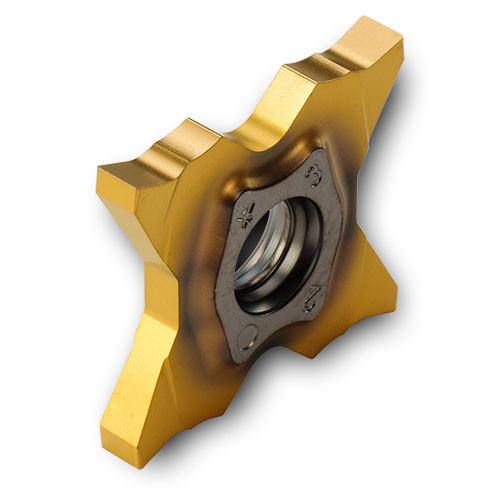

TQS27-2.39-0.15 TT9080
Grooving Insert; 0.094″ CW × 5.12″ Max Depth × 0.157″ Thickness ; Carbide ; TT9080 ; TiAlN+TiN
| Cutting Width (CW) | 0.094″ | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.006″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 5.12″ | Number of Cutting Edges | 4 |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.157″ | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+TiN | Min. Grooving Feed (fg(min)) | 0.001″ |
| Grade | TT9080 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.033
