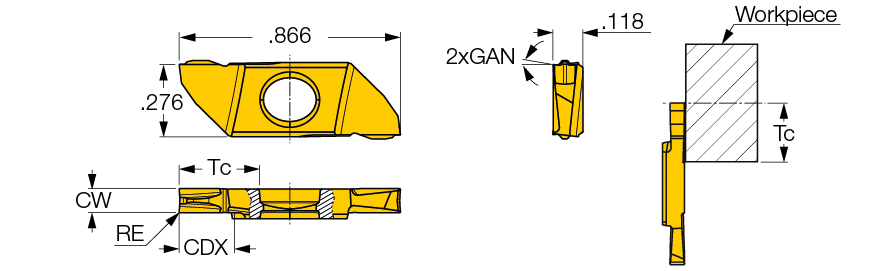

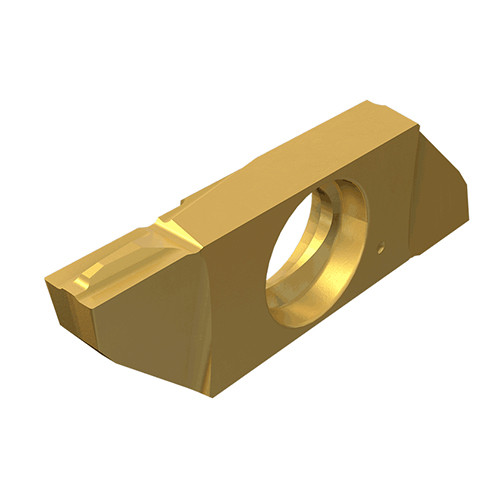

SCIR 22-AD08-24K8 IC1008
Grooving Insert; 0.094″ CW × 0.217″ Max Depth × 0.276″ Thickness ; Carbide ; IC1008 ; TiAlN+TiN
| Cutting Width (CW) | 0.094″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0.0031″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.217″ | Application | | Ext. Grooving & Turning | Ext. Turning | |
| Clearance Angle Major (AN) | 7 Degrees | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.276″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.866″ | Threads per Inch (TPI) | 8 |
| Insert Rake Angle (GAN) | 8 Degrees | Body Material | Carbide |
| Feed | 0.0059 inch/rev | Cutting Edge Length (L) | 0.401″ |
| Coating | TiAlN+TiN | Height | 0.344″ |
| Grade | IC1008 |
Product Features

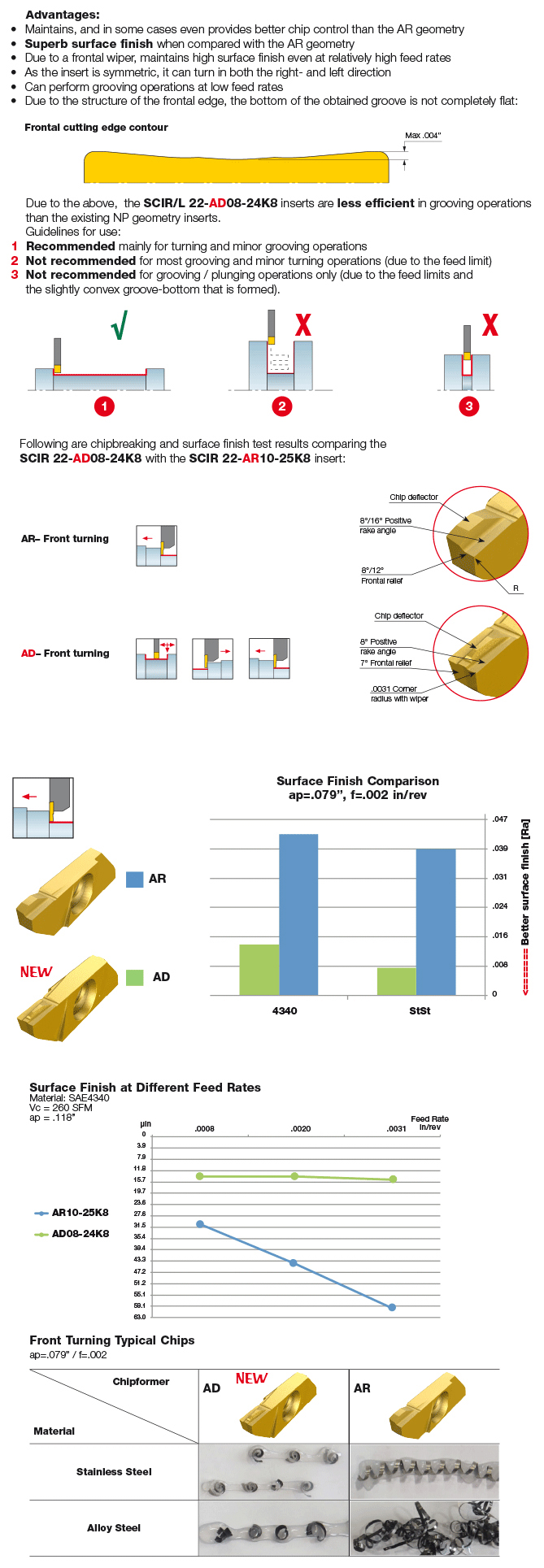

| Family Description | Turning inserts with a front relief angle used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
