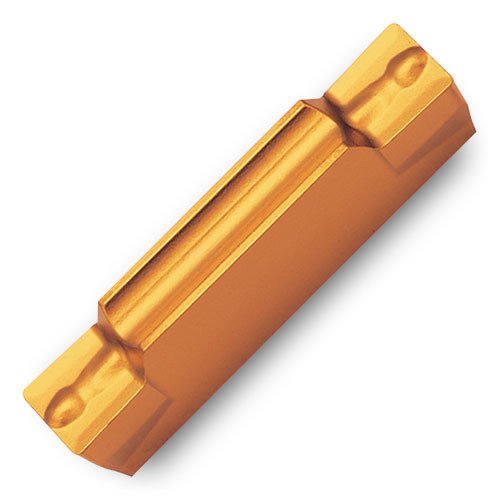

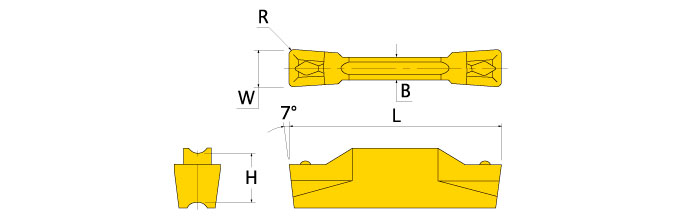

TDT10.00E-0.80 TT6080
Grooving Insert; 0.394″ CW × 0.0177″ Max Depth × 0.315″ Thickness ; TT6080
| Cutting Width (CW) | 0.394″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.031″ | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 0.0177″ | Insert Seat Size Code (SSC) | 10 |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Threads per Inch (TPI) | 8 |
| Insert Thickness (S) | 0.315″ | Min. Grooving Feed (fg(min)) | 0.0079″ |
| Insert Length (INSL) | 1.18″ | Body Material | Carbide |
| Grade | TT6080 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.064
