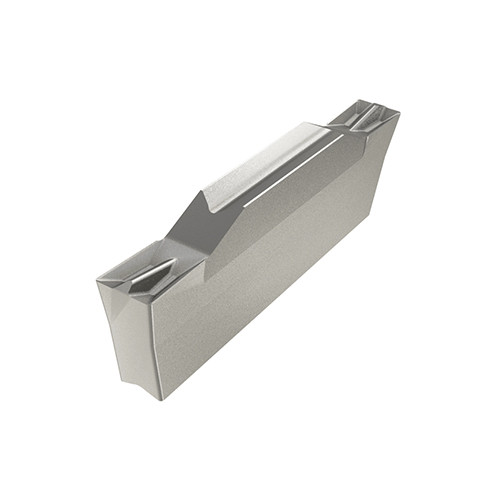

GDMW 2.4 IC908
Grooving Insert; 0.094″ CW × 0.709″ Max Depth ; Carbide ; IC908 ; TiAlN

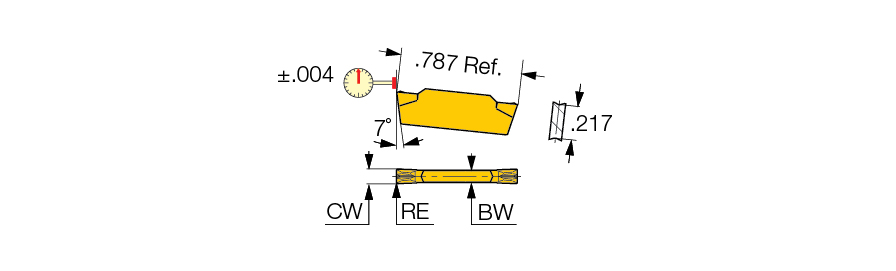

| Cutting Width (CW) | 0.094″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Corner Radius (RE) | 0.007″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Thread Pitch Maximum (TPX) | 0.344″ | Tool Type | Groove-Turn Utility Inserts |
| Insert Length (INSL) | 0.787″ | Threads per Inch (TPI) | 8 |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Utility, double-ended inserts. Used for external grooving and turning at low-to-medium feeds. For grooving, reduce cutting speed by 30% and feed by 50%. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009

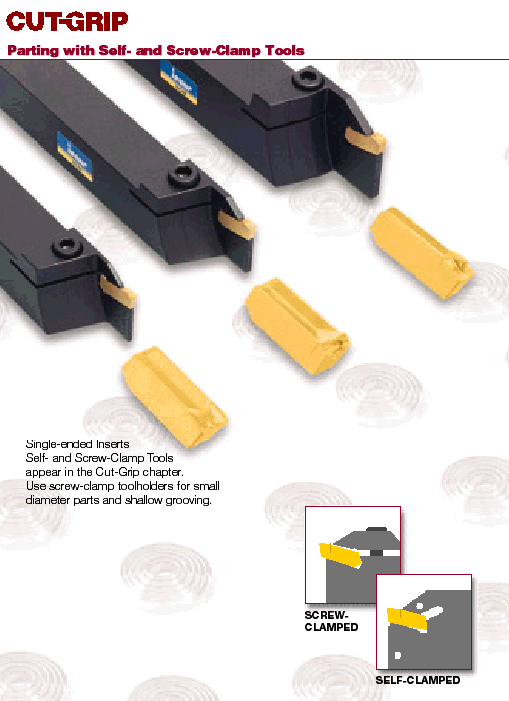

Related Documentation
Utility, double-ended, double chipformer for cut-off, grooving and turning. Efficient on alloy steel and stainless steel at low and medium feeds.
