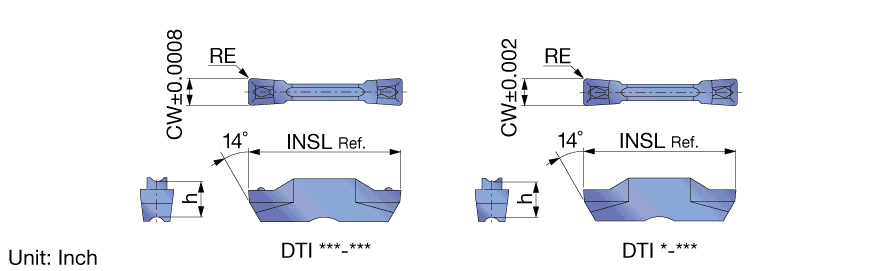

DTI4-040 T9125
Grooving Insert; 0.157″ CW × 0.195″ Max Depth × 1/8″ Thickness ; Carbide ; T9125 ; TiCN+Al2O3+TiN
| Cutting Width (CW) | 0.157″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0157″ | Applicable Material | Steel | |
| Cutting Depth Maximum (CDX) | 0.195″ | Cutting Direction (HAND) | Neutral |
| Thread Pitch Maximum (TPX) | 0.344″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Feed | 0.0122 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+Al2O3+TiN | Threads per Inch (TPI) | 8 |
| Grade | T9125 | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features

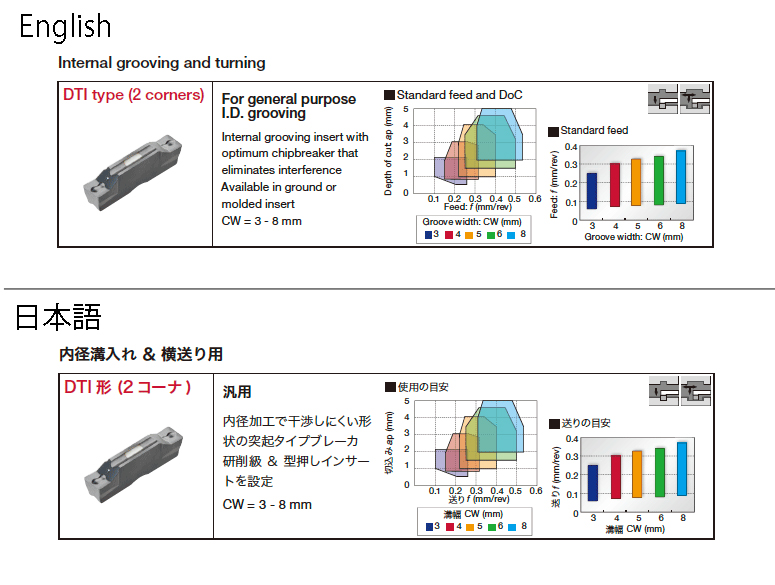

| Family Description | Double-ended inserts, 1st choice for internal grooving & turning, tolerance of insert width +-0.0008 inch (only DTI3-040 & DTI4-040 +-0.002 inch) | Country of Origin | Japan |
Shipping Info
Package Weight
0.011
