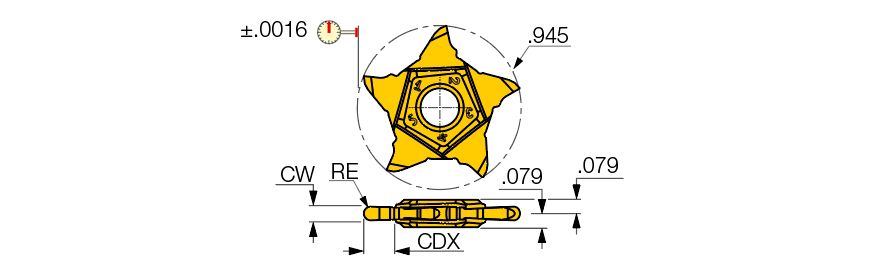

PENTA 24N400PF200 IC30N
| Cutting Width (CW) | 0.157″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Corner Radius (RE) | 0.0787″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | |
| Cutting Depth Maximum (CDX) | 0.244″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 0.945″ | Measurement Type | Inch |
| Insert Rake Angle (GAN) | 6 Degrees | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC30N | Cutting Edge Length (L) | 0.401″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Cermet |
Product Features
| Family Description | Full radius parting and precision grooving inserts for soft and small parts. High positive rake, most economical system with 5 cutting edges. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.019
