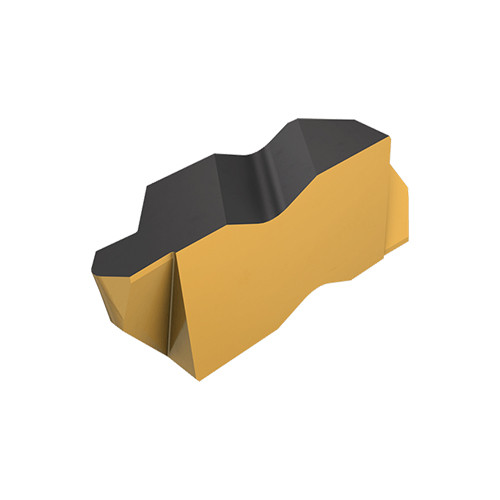

INU3094L IC907

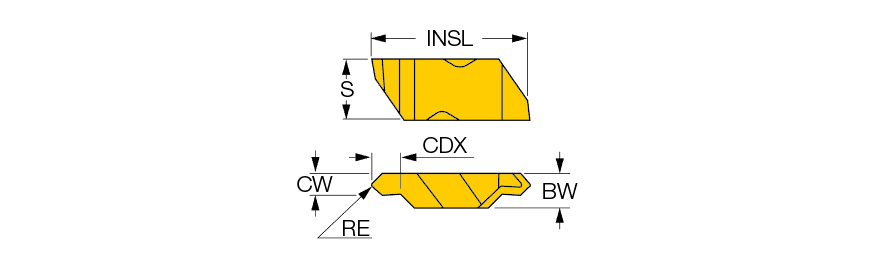

| Cutting Width (CW) | 0.094″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0201″ | Application | | Ext. Undercut | |
| Cutting Depth Maximum (CDX) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 12 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.344″ | Tool Type | Groove-Turn Precision Inserts |
| Insert Length (INSL) | 0.89″ | Threads per Inch (TPI) | 8 |
| Minimum Bore Diameter (DMIN) | 0″ | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Length (L) | 0.401″ |
| Grade | IC907 | Height | 0.344″ |
| Shape | Parrallelogram |
Product Features
| Family Description | Precision double-ended flat top inserts for external undercutting and recessing. | Country of Origin | USA |
| Remarks | Not recommended for turning DMIN according to related boring bar |
Shipping Info
Package Weight
0.018
