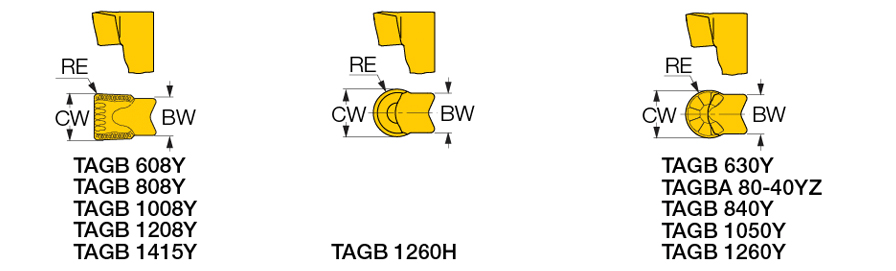

| Cutting Width (CW) | 0.236″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Feed | 0.0236 inch/rev | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC808 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
Product Features
| Family Description | Grooving turning and parting wide single-ended inserts. Used for tough applications and hard materials. A positive rake, single cavity with negative land and shoulders, provide extra cutting-edge strength. Medium-to-high feeds. | Country of Origin | Israel |

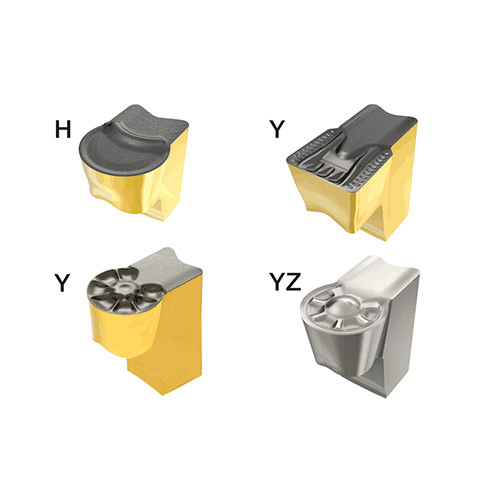

| Remarks | H-type chipformer with a negative T-land for machining heavy interrupted applications and cast iron parts |
Shipping Info
Package Weight
0.012
