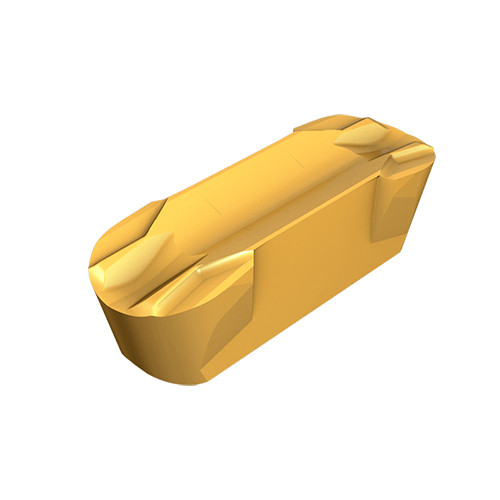

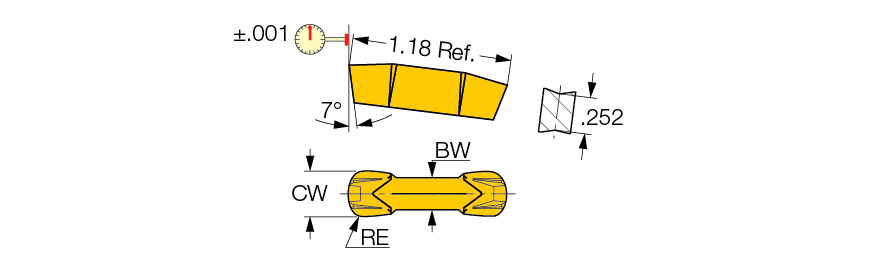

GIF 10.00E-5.00 IC8250
Grooving Insert; 0.394″ CW × 0.906″ Max Depth ; Carbide ; IC8250 ; TiCN+Al2O3+TiN
| Cutting Width (CW) | 0.394″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.197″ | Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.906″ | Applicable Material | | Steel | Stainless Steel | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 1.181″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.559″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0307 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features
| Family Description | Precision inserts for heavy-duty machining. Double-ended, F-type chipformer, medium-to-high feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.56 |
Shipping Info
Package Weight
0.059
