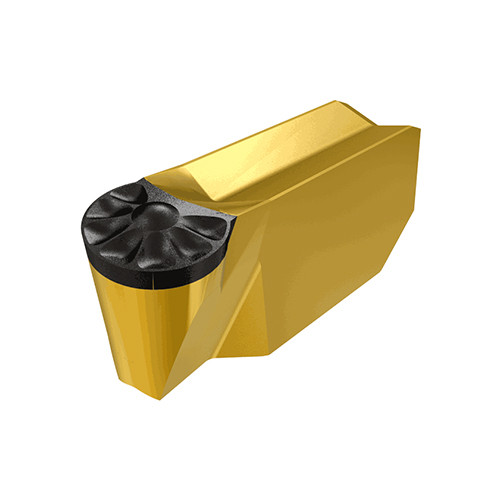

GIMY 315-UN IC8250
Grooving Insert; 0.118″ CW × 0.079″ Max Depth ; Carbide ; IC8250 ; TiCN+Al2O3+TiN

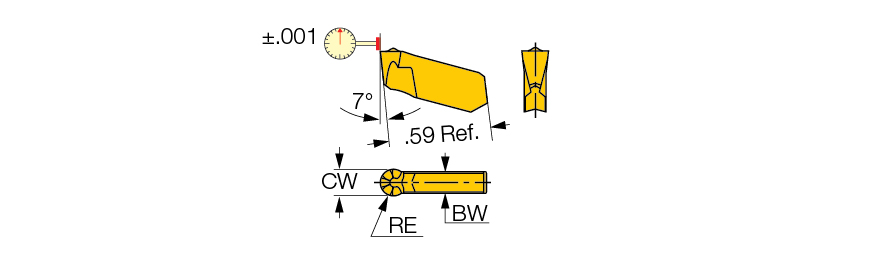

| Cutting Width (CW) | 0.118″ | Application | | Ext. Undercut | |
| Corner Radius (RE) | 0.059″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.079″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | U |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.591″ | Tool Type | Groove-Turn Utility Inserts |
| Feed | 0.0059 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Utility inserts for external undercutting. Single-ended for deep machining, Y-type chipformer, low-to-medium feeds. | Country of Origin | Israel |
| Remarks | For 45° undercutting on D 3.94, regular GIMY inserts may be used. |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.008
