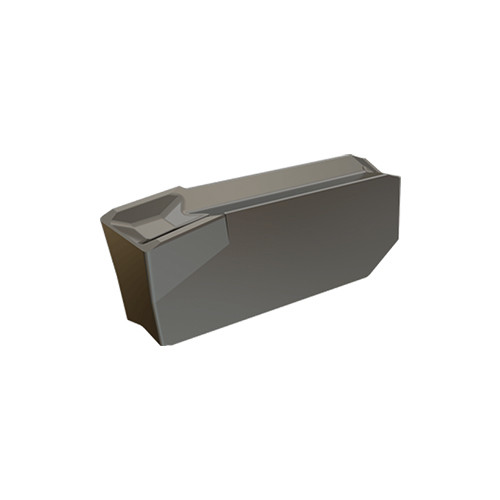

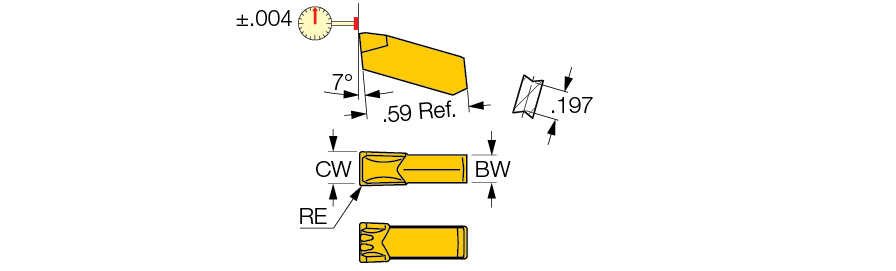

GIM 3C IC328
Grooving Insert; 0.118″ CW ; Carbide ; IC328 ; TiCN
| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0087″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | C |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Feed | 0.0098 inch/rev | Measurement Type | Inch |
| Coating | TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | IC328 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Int. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Height | 0.344″ |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Length
4.00000
Package Width
1.58700
Package Height
.49100
Package Weight
0.009
Related Documentation
Utility, single-ended, for cut-off and deep grooving. C-type single concave chipformer. Effective on a wide range of materials at medium-to-high feeds.
