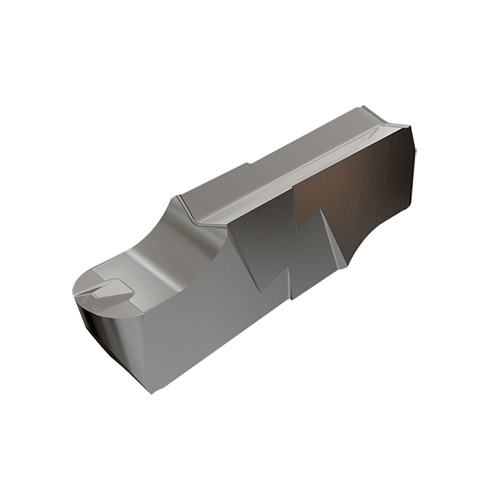

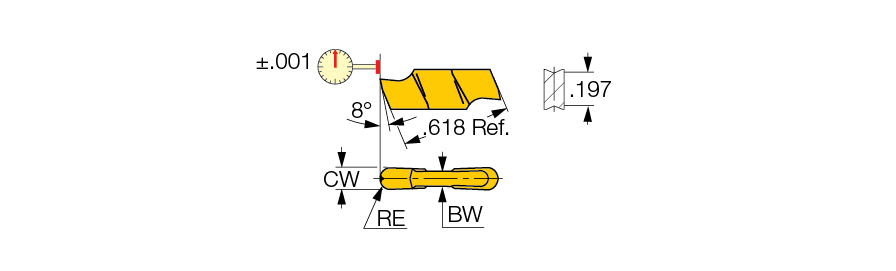

GIPI 3.18-1.59 IC20
Grooving Insert; 1/8″ CW ; Carbide ; IC20 ; Uncoated
| Cutting Width (CW) | 1/8″ | Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Corner Radius (RE) | 0.063″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.618″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.787″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0051 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore .787″. | Country of Origin | Israel |
| Remarks | Dmin for internal application= .787 |
Shipping Info
Package Weight
0.009
