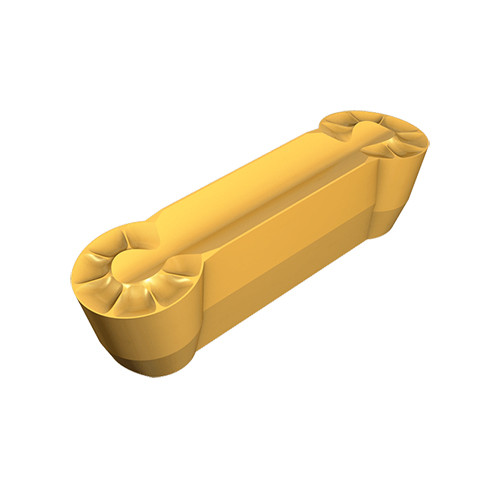

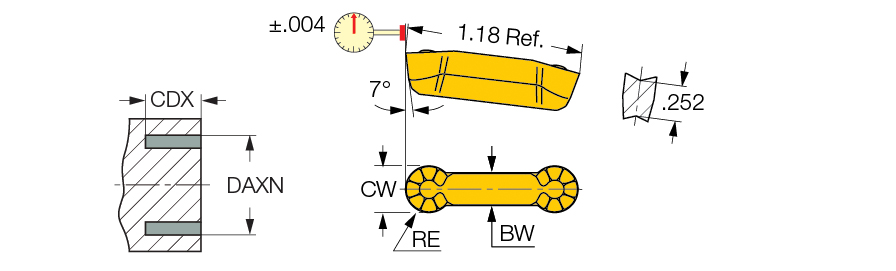

GDMY 840 IC806
Grooving Insert; 0.315″ CW × 0.984″ Max Depth × 0.252″ Thickness ; Carbide ; IC806 ; AlTiN "SUMO TEC"
| Cutting Width (CW) | 0.315″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.157″ | Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.984″ | Applicable Material | | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Thickness (S) | 0.252″ | Axial Groove Outside Diameter Minimum (DAXN) | 1.97″ |
| Insert Length (INSL) | 1.181″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.559″ | Tool Type | Groove-Turn Utility Inserts |
| Feed | 0.0264 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC806 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
Product Features
| Family Description | Utility, double-ended inserts. Used for heavy duty turning, profiling and grooving. Maximum machining depth is 1.0″. | Country of Origin | Israel |
| Remarks | Can cut arcs to 250° DMIN for internal machining = 2.56 |
Shipping Info
Package Weight
0.045
